Allowing for highly accurate, reliable splices with minimal loss, FITEL® Fusion Splicers are designed using state-of-the-art technology from our parent company, Furukawa Electric Company (FEC). Expertly crafted based on feedback received from countless customer installations, these splicers are simple yet highly precise and reliable, and can support a full range of fiber manufacturing, R&D, installation, and maintenance applications. As the official distributor of FITEL products in the Americas, OFS is proud to offer a range of splicing solutions to meet various client needs.  See our product offering below or download our brochure.

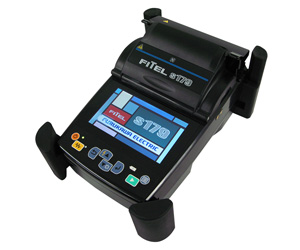

FITEL® S179 Fusion Splicer

S179 Fusion Splicer

The latest splicer from the FITEL Fusion Splicer Line.

Unique Features

Below is a summary of some of FITEL® S179’s key features.

  • 4.3-inch-wide LCD screen
  • Three upper LEDs, one lower LED
  • Detachable V-groove
  • Wi-Fi networking capability
  • High-speed operation
  • 6-second splice time
  • 300 splice programs
  • Near field communication (NFC) capabilities
  • Easy portability
  • Rugged design
  • Ability to withstand severe conditions

FEC’s newest model, the FITEL® S179 Fusion Splicer, offers fast, consistent splicing with superior ease of use. Featuring an internal battery charging system, the S179 allows for 200 splicing cycles in one charge and is built to withstand harsh environments. This splicer is well-suited for use with ultra-bend-insensitive and large-area effective fibers, while its shock, drop, water, and dust resistance make it a good fit for severe conditions. Common applications include data centers, fiber sensors, long-haul, FTTx, LAN, backbone, metro, and the manufacture of optical components. A high-quality LCD touch screen allows for simple, intuitive operation, while illumination lamps allow for easy observation of the entire splicing chamber. Simple, quick maintenance and lens cleaning are also possible thanks to S179’s detachable V-groove.



Allowing for easy communications, this splicer offers Wi-Fi networking for reliable communication between the splicer and a smartphone, while near field communication (NFC) capabilities allow the splicer to be locked and unlocked through the use of certain types of smartphones.



Click here to see this product in the catalog! >>

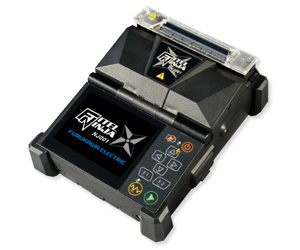

FITEL® NINJA NJ001 Fusion Splicer

NINJA NJ001 Fusion Splicer

Unique Features

This highly accurate, reliable fusion splicing machine offers several unique features over other splicers on the market. Some key advantages are listed below.

    • 13-second splice time
    • 100 cycles
    • High propulsion motor
  • Rugged design
  • PC interface software
  • Auto-start function
  • Removable V-groove
  • 3.5-inch LCD
  • Compatibility with splice-on-connectors
  • Three LEDs
  • 150 splice programs



The FITEL® NINJA NJ001 Fusion Splicer . Reducing the total cost of ownership and requiring minimal maintenance, this model is specifically designed to accommodate FTTH (fiber-to-the-home) technicians. For example, the NINJA’s detachable V-groove — the industry’s first — allows technicians to quickly remove and more thoroughly clean critical parts; in the past, splicers needed to be sent out for repair as it was difficult to deep clean individual parts. In fact, the team at FEC has found that dirty V-grooves are the reason for up to 70% of splicer repairs.



A handheld single-fiber fusion splicer, the NINJA is compact enough to hold but still provides ample space in the splicing chamber. LED lamps allow for high visibility, while the rugged design makes this splicer well-suited for frequent use. Providing fast splicing in as little as 13 seconds and fast heating, at 20 seconds for a 60-mm sleeve, the NINJA is a reliable solution for any type of on-site job. Automatic splicing can be done at the press of a key by the operator, and a pin guide facilitates fiber placement, allowing for simple, intuitive operation.



This fusion splicer offers plenty of room for a technician’s hands to operate and load fibers properly and, thanks to the LEDs that provide more than 300 lux, low-light conditions aren’t a problem. Other user-friendly features include lens protection and a removable heater bracket to help enable field-installable connector assembly — without the need for an external heater — in order to accommodate splice-on connectors (SOC).



The FITEL® NINJA NJ001 offers unmatched versatility and long battery life, and is compatible with fusion splice-on field-installable connectors from many manufacturers. Technicians can achieve 100 splicing and heating cycles in a single charge.



Click here to see this product in the catalog! >>

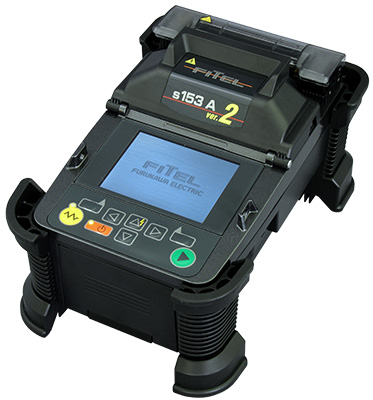

FITEL® S153 V2 Fusion Splicer

S153 Fusion Splicer

Unique Features

  • Active V-groove design
  • Rugged and compact hand held design
  • Fast splice (9 sec)
  • 200 cycles (splicing & heating)
  • Available for All METRO/LAN/FTTX
  • Splicer is compatible with Seikoh Giken* and Diamond** SOCs
  • Easy maintenance
  • Easy Software upgrade
  • Easily exchanged fiber holder systems
  • PC interface software
  • Auto-start
  • Auto-start splicing
  • Improved GUI
  • Large memory
  • RoHS compliant

The FITEL® S153 V2 Fusion Splicer is an obvious choice for low cost field splicing equipment. The Active V-Groove Technology used on the S153 V2 Fusion Splicer delivers low loss splices while helping to eliminate common Fixed V-groove splicing errors. By combining speed, precision, durability and portability in one unit, the S153 V2 Fusion Splicer ushers in an entirely new range of applications for active alignment splicing.



The S153 V2 A Fusion Splicer canopy design, durable metal body frame and rubber protection corners provide robust protection, enabling use in demanding environments without compromising splicer performance. The S153 V2 A is water resistant to IPX2 and dust resistant to IP5X.



Equipped with a new alignment system that can save up to 20% on splicing time, the S153 V2 Splicer’s improved heating mechanism can also reduce protection sleeve shrink time by more than 30%. In addition, a newly incorporated USB 2.0 interface speeds PC communication and image/video transfer, while enhancing reliability.



While the S153 V2 Fusion Splicer is fast and durable, it continues the FITEL tradition of quality and excellence by delivering precise, accurate splices even under rigorous conditions in the field.



The S153 V2 Fusion Splicer is your logical choice for a wide range of uses including FTTX, LAN, backbone, enterprise, long-haul installations, data-center and/or OEM applications. It is also an excellent option for use in the conventional telecommunications industry, along with other industries (including oil and gas).



Click here to see this product in the catalog! >>

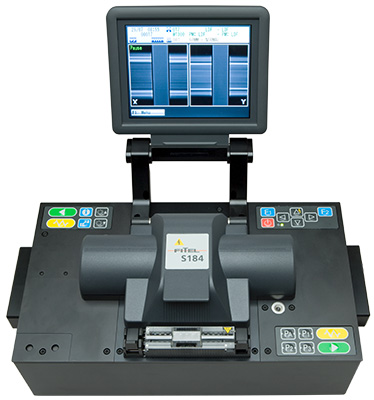

FITEL® S184PM SLDF Advanced Fusion Splicer

S184PM SLDF Fusion Splicer

Unique Features

  • Three electrodes
  • Applicable fiber
  • Smooth rotation mechanism
  • Flat fiber holder platform
  • Automatic adjustment for fiber size/length
  • Simple operation
  • Intuitive interface
  • Large monitor
  • Advanced “SmartFuse” functionality

The FITEL® S184PM SLDF Advanced Fusion Splicer features 3SAE Technologies’ “Ring of Fire®”. This three-phase wide area plasma technology enables splicing of large cladding fibers, as well as flame polishing and core diffusion capability. It is the perfect solution for advanced OEM, R&D, and other specialized applications. It delivers:

  • Extremely stable, controllable, and repeatable heating over a large range of intensity
  • Wide area heat zone to

Click here to see this product in the catalog! >>

FITEL® S183PMII V2 SLDF Advanced Fusion Splicer

S183PM2 V2 Fusion Splicer

Unique Features

  • Specialty Splicing Made Easy – The advanced features of the S183PMII Fusion Splicer allow you to splice today’s and tomorrow’s most exotic fiber types. Whether performing high-strength splices, splicing small cladding fibers (80 µm), large cladding fibers (500 µm), high splicing combinations, PM fibers, or erbium doped fiber, the S183PMII is the splicer for your high-end application.
  • Fast Splice Time – The splice time is lightning fast at 35 seconds for PANDA and 15 seconds for SM. The S183PMII Fusion Splicer is the fastest in the industry for most fiber applications, allowing you to increase efficiency on your production line. Safe PM Fiber Rotation – The new rotation mechanism on the S183PMII Fusion Splicer allows PM fiber to rotate while keeping it straight and stable. This minimizes fiber twist, which can be detrimental to sensitive splicing applications.
  • Quick Loading & Automatic Machine Adjustment – The S183PMII Fusion Splicer automatically adjusts for different fiber coating and cladding sizes. There is no need to exchange v-grooves, or fiber clamps. In addition, the S183PMII Fusion Splicer has been designed so that the user simply loads the fiber and closes the lid to begin the fusion process. There is no need to lower or set fiber clamps before beginning your splice.
  • Automatic Fiber Holder Release – The S183PMII Fusion Splicer automatically performs a tensile proof test on the fiber and releases the holder lid to avoid twisting the fiber after the splice. This automation eliminates the need for the user to manually open and reset the splicer after each fusion splice.

The S183PMII V2 Advanced Fusion Splicer was designed specifically for the demanding production and research applications of the optical components industry, being capable of:

  • Splicing specialty and exotic fiber combinations
  • Very large diameter fiber splicing (up to 500 µm)(With optional LDF holder and LDF electrode)
  • Polarization maintaining fiber splicing
  • High-strength splicing application

Click here to see this product in the catalog! >>

FITEL® S123M12 V2 Fusion Splicer

S123M12 Fusion Splicer

Unique Features

  • Rugged and compact hand held design
  • Fast splice
  • Simple operation
  • Splicer is compatible with Seikoh Giken* and Diamond** SOCs
  • 70 cycles
  • Available for all METRO/LAN/FTTX
  • Easy maintenance
  • Easy software upgrade
  • Easily exchanged fiber holder systems
  • PC interface software
  • Auto-start
  • Improved GUI
  • Large memory
  • RoHS compliant

With its low profile and new super rugged body, the FITEL® S123 V2 Series Fusion Splicer offers speedy operation for FTTX, LAN, backbone or long-haul installations. The lightweight, durable metal body frame and rubber protection corners provide robust protection, enabling use in challenging locations without compromising splicer performance. The S123 V2 Splicer is water resistant to IPX2 and dust resistant to IP5X.



A large battery capacity makes it possible to perform up to 70 cycles of splicing and heating for the S123 V2 C/M4 models with a single battery, and 160 cycles for the S123 V2 M8/M12 models with a dual battery configuration.



Combining portability, power flexibility and field ruggedness, the S123 V2 Splicer delivers fast and consistent splicing with outstanding mobility and extreme ease-of-use. It also offers a splice-on connector (SOC) solution.



Click here to see this product in the catalog! >>

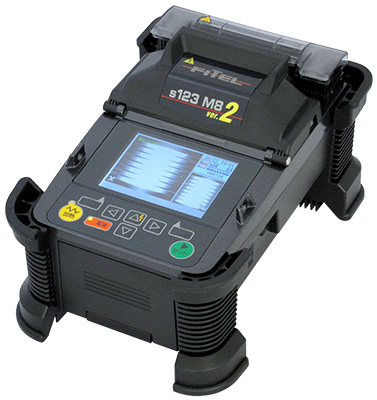

FITEL® S123M8 V2 Fusion Splicer

S123M8 Fusion Splicer

Unique Features

  • Rugged and compact hand held design
  • Fast splice
  • Simple operation
  • Splicer is compatible with Seikoh Giken* and Diamond** SOCs
  • 70 cycles
  • Available for all METRO/LAN/FTTX
  • Easy maintenance
  • Easy software upgrade
  • Easily exchanged fiber holder systems
  • PC interface software
  • Auto-start
  • Improved GUI
  • Large memory
  • RoHS compliant

With its low profile and new super rugged body, the FITEL® S123 V2 Series Fusion Splicer offers speedy operation for FTTX, LAN, backbone or long-haul installations. The lightweight, durable metal body frame and rubber protection corners provide robust protection, enabling use in challenging locations without compromising splicer performance. The S123 V2 Splicer is water resistant to IPX2 and dust resistant to IP5X.



A large battery capacity makes it possible to perform up to 70 cycles of splicing and heating for the S123 V2 C/M4 models with a single battery, and 160 cycles for the S123 V2 M8/M12 models with a dual battery configuration.



Combining portability, power flexibility and field ruggedness, the S123 V2 Splicer delivers fast and consistent splicing with outstanding mobility and extreme ease-of-use. It also offers a splice-on connector (SOC) solution.



Click here to see this product in the catalog! >>

OFS: Premier FITEL® Splicer Distributor

OFS is proud to be the official distributor for high-quality FITEL® Fusion Splicers. To learn more about FITEL® splicing solutions,check out our comprehensive catalog. And to discuss how they can help improve accuracy for your next project, contact us today; our experts are on hand to answer any questions you may have.
