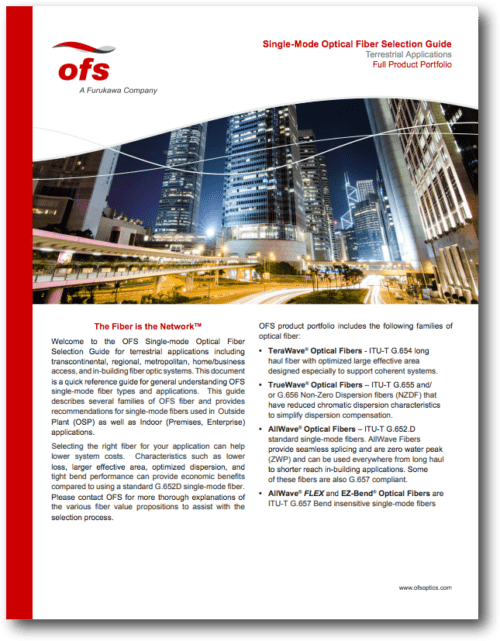

Single-mode selection guide cover

Download the OFS single-mode optical fiber selection guide for terrestrial applications. Optical fiber applications include transcontinental, regional, metropolitan, home/business access and in-building fiber optic systems. The guide describes several families of OFS optical fibers and provides recommendations for single-mode fibers used in Outside Plant (OSP) as well as Indoor (Premises, Enterprise) applications and their benefits.



Selecting the right single-mode fiber for your application can help lower system costs. Characteristics such as lower loss, larger effective area, optimized dispersion and tight bend performance can provide economic benefits compared to using a standard G.652.D single-mode fiber. Please contact OFS for more thorough explanations of the various fiber value propositions to assist with the selection process.



OFS families of Single-Mode Optical Fibers include:

• TeraWave® Optical Fibers - ITU-T G.654 long haul fiber with optimized large effective area designed specifically to support coherent systems.
• TrueWave® Optical Fibers – ITU-T G.655 and/or G.656 Non-Zero Dispersion fibers (NZDF) that have reduced chromatic dispersion characteristics to simplify dispersion compensation.
• AllWave® Optical Fibers – ITU-T G.652.D standard single-mode fibers. AllWave Fibers provide seamless splicing and are zero water peak (ZWP) and can be used everywhere from long haul to shorter reach in-building applications. Some of these fibers are also G.657 compliant.
• AllWave® FLEX and EZ-Bend® Optical Fibers are ITU-T G.657 bend insensitive single-mode fibers



Loass Chart

Single-Mode Optical Fiber Application Comparison Charts Include:
• Long Haul - >1000 km*
• Regional, Metro, Utility, Wireless Backhaul - 60 to 1000 km
• FTTx: Home, Business, Cell Site - Up to 60 km - All types and data rates of PON and single-mode point-to-point networks.
• High Density Applications





Premises, Drop, Cabinet and Connectivity Application Selection Charts Include:
• Central Office, Head End, Data Center, Cabinets, Fiber to the Antenna, General In-Building
• Drop and in the Living Unit
